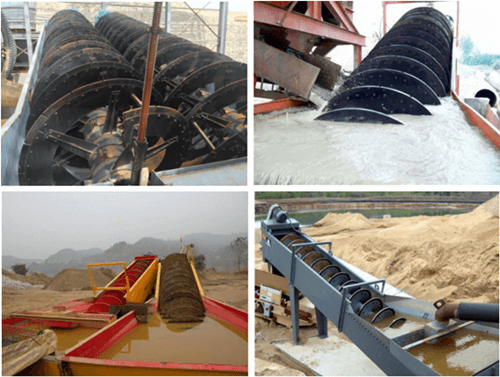

LZZG spiral sand washing machine


LZZG spiral sand washing machine is mainly used for many sandstone industries such as: sandstone factory, building work site, hydroelectricity dam, glass manufacture, oil well development. The machine is specially designed for sandstone and quartz sand company to wash, separate, and classify and dehydrate.

This sand washer should be installed with an angle of 15 degree, under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool, this machine have three functions of washing, dewatering, classifying.


  • 1.It can clean the material of high mud content;
  • 2.It install in 15º angle.
  • 3.The spiral can be customized.
